ELECTRONIC WARFARE
/
ELINT & SIGINT
ELINT & SIGINT

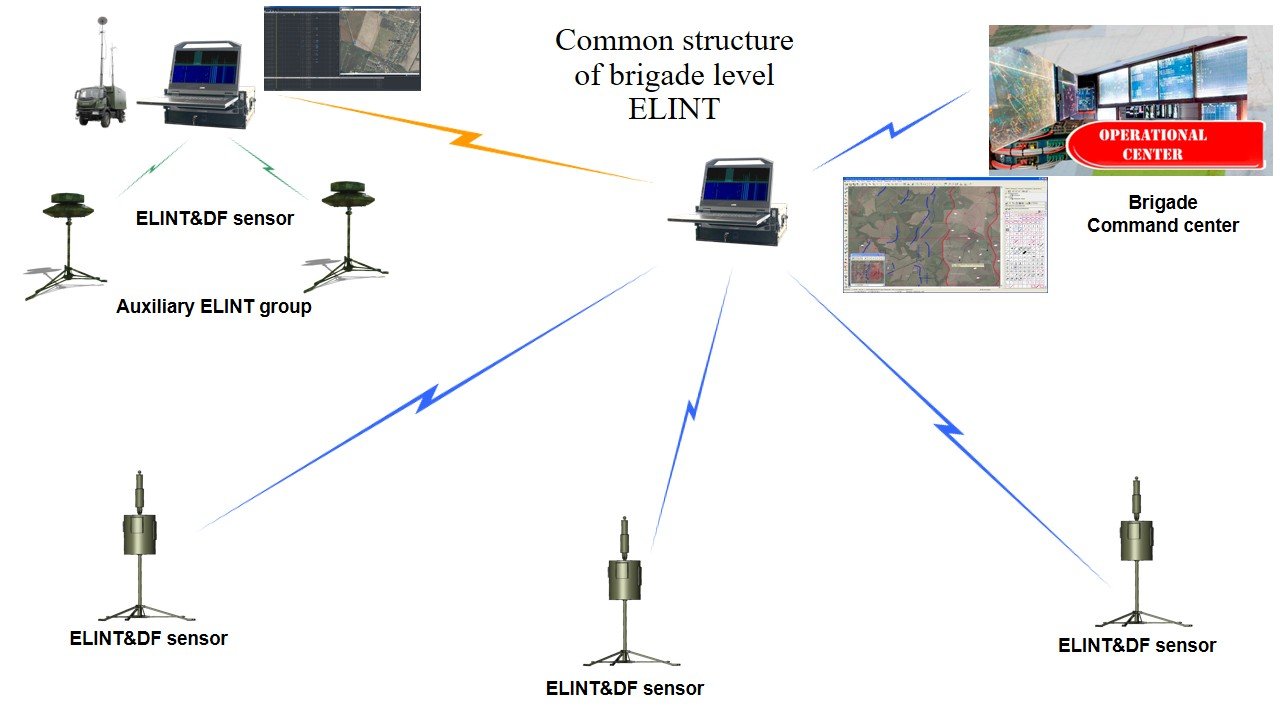

Advanced multi-channel SIGINT system for real-time interception, geolocation, and analysis of communications — fully integrated with command-level operations and MIL-STD 2525D.
TACTICO-TECHNICAL CHARACTERISTICS (TTC)
FACTOR
01
Operating Frequency Range (MHz): 25 - 6000
02
Panoramic Chanel Frequency Band (MHz): 40
03
Number of Panoramic Channels: 4 / 8 / 16
04
Simultaneous Viewing Band (MHz): 160 / 320 / 640
05
Number of Simultaneously Intercepting Signals: 256/ 512 / 1024
06
Dimensions (WxDxH), cm: 62x72x45 / 62x72x50 / 2x 62x72x50
07
Weight, kg: 35 / 45 / 2x 45
08
Power consumption, W: 450 / 550 / 1100
AQUARIUM
01
GSM Standarts : EGSM900 / DCS1800
02
Algorithms that are decrypted: A5.1, A5.2
03
Range of registration of base stations and interception of communication sessions, km: Up to 70
04
Number of simultaneously received duplex frequency channels: 128
05
The number of simultaneously processed and recorded communication sessions: 1024
06
The number of computing keys for A5.1 (pcs/s): 5 - 12
07
The number of computing keys for A5.2 (pcs/s): 50 - 100
08
Overall dimensions (WxDxH), cm: 62x72x50
09
Weight, kg: 20
10
Power consumption, W: 300
REALIZ
01
Interception Range (km): to 30
02
Antenna Converter Frequency Bands (GHz): 5,9-7,2; 7,2-8,4; 10,7-11,7; 11,7-12,8; 12,8-13,9; 14,2-15,4; 17,7-18,7; 18,7-19,7; 21,2-22,4; 22,4-23,6
03
Types of Processed Streams: binary stream levelE1 (G.732 2G), used ETS 300 594 (layer 1), ETS 300 595 (layer 2), ETS 300 596 (layer 3); five variation of GPP Generic Procedure) ITU-T G.7041; binary stream GSM Abis over IP
04
Types of modulation: BPSK, QPSK, OQPSK, CQPSK, π/4-QPSK, 4FSK, 16-256QAM, 512QAM and 1024QAM. Adaptive modulation signal reception implemented
05
Symbol rate MSym/s: from 2 to 75
06
Types of Logged Data: Voice sessions, SMS, USSD
07
Types of Logged Service Data: Date, Time, Session Type, IMSI, IMEI, TMSI, Dialed or Caller, LAC
08
Overall dimensions (WxDxH), cm: 62x72x50
09
Weight, kg: 25
10
Power consumption, W: 400
